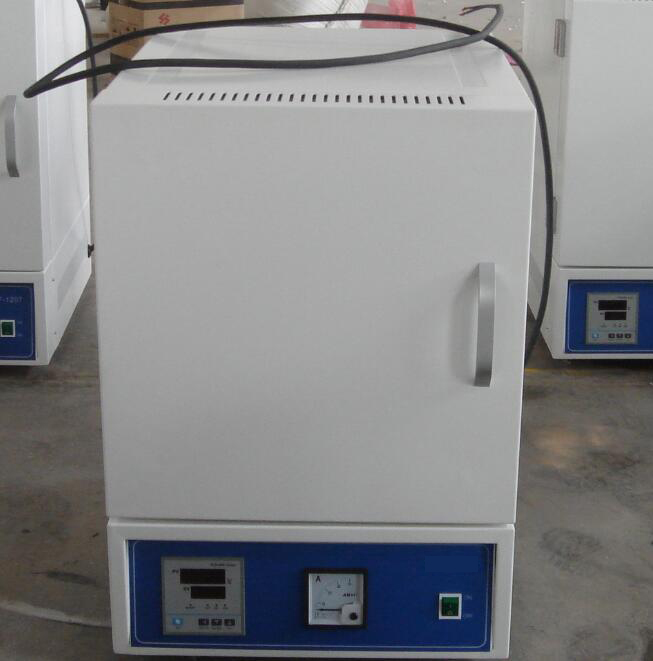

1000 C 1200C Muffle Furnace For Laboratory

Short Description:


Product Detail

Product Tags

  • Product Description

Uses:

The product is used for elements analysis in colleges & universities,scientific research institutes,and laboratories of insustrial and mining enterprises.

Characteristics:

1. Cold rolling steel with electrostatic power coated exterior.

2. The user can choose the PID two digitals screen controller and Programmable controller as inquiry.

3. The top quality controller and Taiwan’s high quality sensor make sure precise temperature.

4. The wires imported from Japan make sure long life and avoid dirty the inner chamber.

5. Good quality and thicker ceramic inner chamber imported from Japan make sure the temperature rising time more shortly.

6. The wires are inlaid inside the furnace heart to provide uniform temperature distribution in the inner wall.

7. The thermal insulation material between the out shell and the inner chamber make sure the surface with the low temperature and safety.

Ⅰ. Introduction

This series of furnace is used for element analyzing in labs, mineral enterprises and science research institutes; other applications include small size steel heating, annealing and tempering.

It is equipped with temperature controller and thermocouple thermometer, we can supply the whole set.

Ⅱ. Main Technical Parameters

Model

Rated power

(kw)

Rated tem.

(℃)

Rated voltage(v)

Working

voltage(v)

P

Heating-up time(min)

Working room size(mm)

SX-2.5-10

2.5

1000

220

220

1

≤60

200×120×80

SX-4-10

4

1000

220

220

1

≤80

300×200×120

SX-8-10

8

1000

380

380

3

≤90

400×250×160

SX-12-10

12

1000

380

380

3

≤100

500×300×200

SX-2.5-12

2.5

1200

220

220

1

≤100

200×120×80

SX-5-12

5

1200

220

220

1

≤120

300×200×120

SX-10-12

10

1200

380

380

3

≤120

400×250×160

SRJX-4-13

4

1300

220

0~210

1

≤240

250×150×100

SRJX-5-13

5

1300

220

0~210

1

≤240

250×150×100

SRJX-8-13

8

1300

380

0~350

3

≤350

500×278×180

SRJX-2-13

2

1300

220

0~210

1

≤45

¢30×180

SRJX-2.5-13

2.5

1300

220

0~210

1

≤45

2-¢22×180

XL-1

4

1000

220

220

1

≤250

300×200×120

Ⅲ. Characteristics

1. High-quality cold rolling steel case with spraying surface. Open-side door is easy to on/off.

2. Medium-temperature furnace adopts enclosed fire pot. The spiral heating component made by electric heated alloy wire coils all around of furnace pot, which guarantees furnace temperature evenness and prolongs its service life.

3. High-temperature tubular resistance furnace adopts high temperature proof combustion tube, and takes elema as heating component to fix on outer sleeve of fire pot.

4. High-temperature box resistance furnace takes elema as heating component fixing in the fire pot to ensure high heat use ratio.

muffle furnace

muffle furnace

SX-8-16 SX-12-16 laboratory muffle furnace
