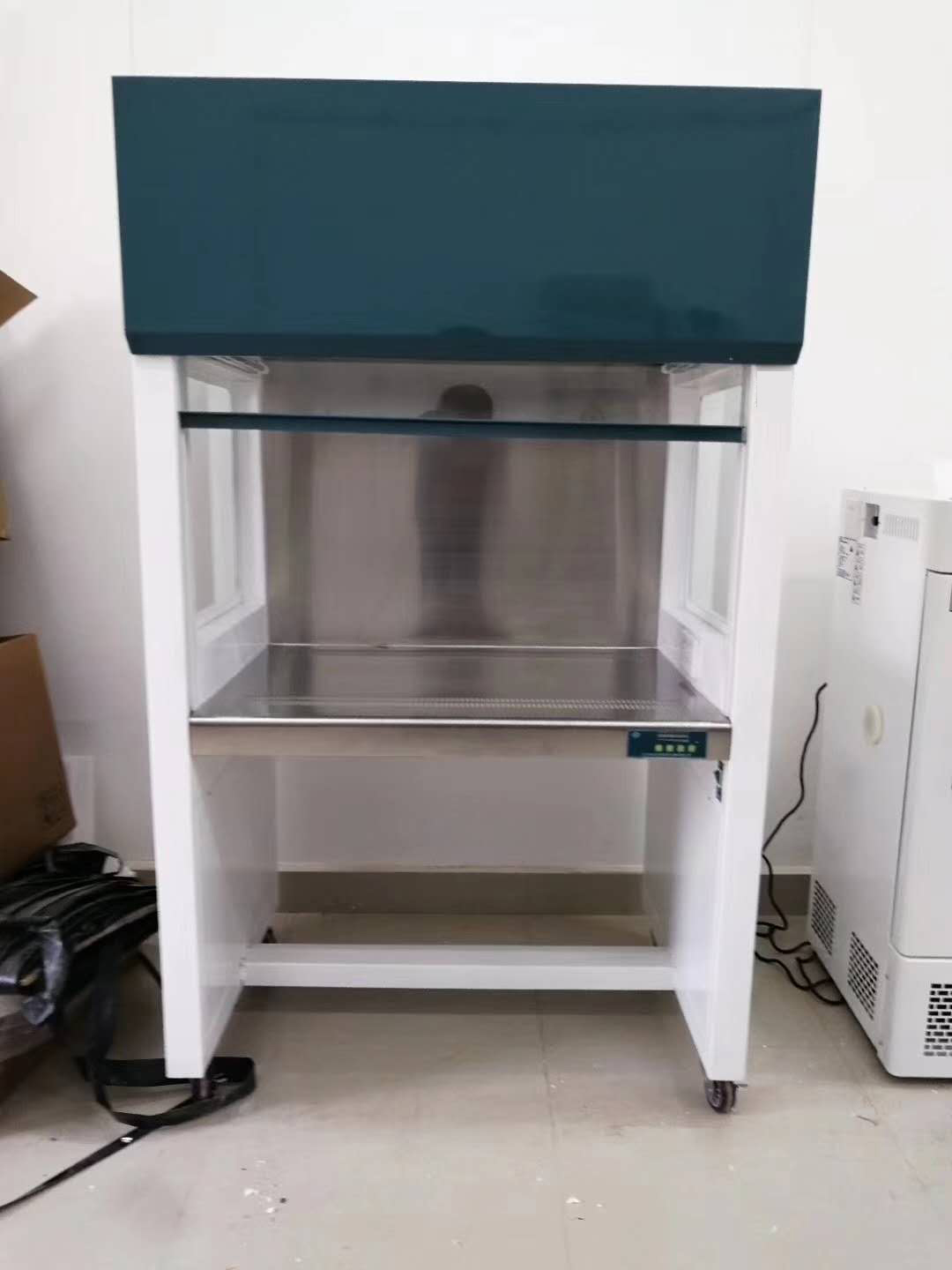

Vertical Horizontal Laminar Air Flow Cabinet Clean Hoods
- Product Description
Clean Work Bench/Vertical Horizontal Laminar Air Flow Cabinet/Laminar Flow Hoods
Characteristics:
▲The shell is made of high quality steel plate,with surface of electrostatic spraying,attractive appearance.
▲ Workspace is made of imported stainless steel, the transparent glasses side panels are on both sides, firm and durable, the working area is simple and bright.
▲ The machine adopts the centrifugal fan, stable, low noise, and blowing rate is adjustable to ensure that the workspace is always in perfect condition.
▲The top equiped with lighting and sterilization devices.
| Model | CJ-1D | |
| Cleanliness | ISO5class(100class@≥0.5μm) | |
| Number of colony | ≤0.5pc/Vessel(dia.90mm)*hour | |
| Mean wind velocity | 0.30-0.60m/s | |
| Noise | ≤62dB(A) | |
| Vibration in half-peak | ≤3μm | |
| Lllumination | ≥300Lx | |
| Power | 220V 50HZ | |
| Maximum power dissipation | 0.3KVA | |
| Size of working area | W1*D1*H1 | 900*600*645mm |
| Overall dimension of the equipment | W*D*H | 850*575*1565mm |
| Specification and quantity of the high efficiency filter | 695*475*50mm,1pc | |
| Specification and quantity of the fluouescent lamp or urltraviolet lamp | 8W,1pc | |
| Proper persons | Single | |
| Model | VD-650 |
| Neatness class | 100class(US federation209E) |
| Average wind velocity | 0.3-0.5m/s (There are two levels for adjusting,and the recommend speed is 0.3m/s ) |
| Noises | ≤62dB(A) |
| Vibration/half peak value | ≤5μm |
| Illumination | ≥300Lx |
| Power supply | AC,single-phase220V/50HZ |
| Maximum power consuming | ≤0.4kw |
| Specification and quantity of the fluorescent lamp and the UVlamp | 8W,1pc |
| Specification and quantity of the high efficiency filter | 610*450*50mm,1pc |
| Size of working area(W1*D1*H1) | 615*495*500mm |
| Overall dimension of the equipment(W*D*H) | 650*535*1345mm |
| Net Weight | 50kg |
| Packing size | 740*650*1450mm |
| Gross weight | 70kg |
