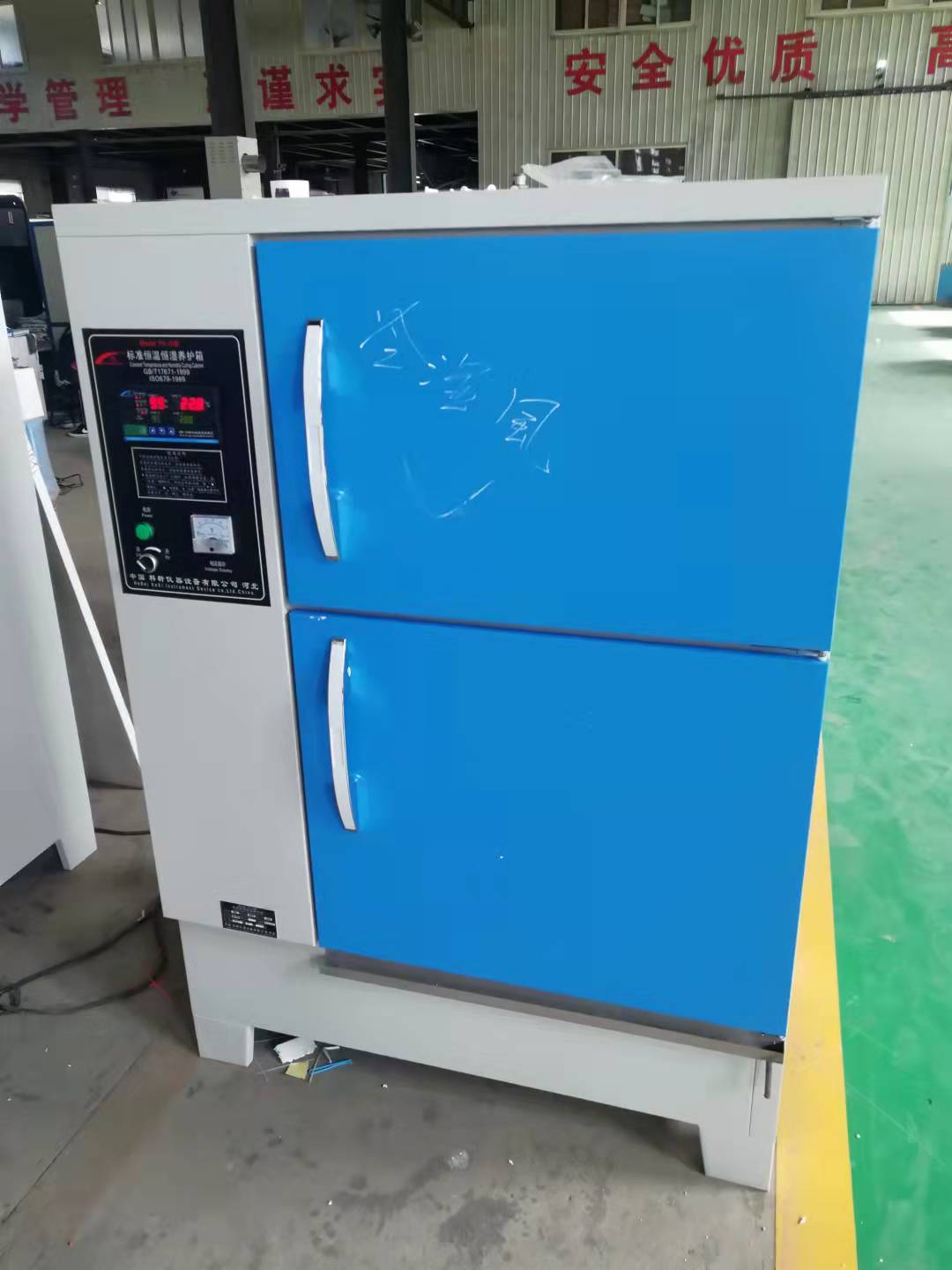

Constant Temperature And Humidity Standard Standard Curing Cabinet

Constant Temperature And Humidity Standard Standard Curing Cabinet

Technical parameters

1.Internal dimensions: 700 x 550 x 1100 (mm)

2. Capacity: 40 sets of Soft practice test molds / 60 pieces 150 x 150×150 concrete test molds

3. Constant temperature range: 16-40% adjustable

4. Constant humidity range: ≥90%

5. Compressor power: 165W

6. Heater: 600W

7. Atomizer: 15W

8. Fan power: 16W × 2

9.Net weight: 150kg

10.Dimensions: 1200 × 650 x 1550mm

Working principle

This instrument converts the signals of the dry and wet temperature sensors into corresponding digital signals, which are processed by a single-chip microprocessor for display and control. When the temperature in the box is lower than the lower limit set by this table, the controller will instruct the heater to increase the temperature, and it will stop automatically when it reaches the temperature set by the lower limit. When the humidity in the box is lower than the set humidity value, the meter instructs the humidifier to perform spray humidification, and automatically stops when it reaches it. Such repeated work control achieves the required purpose. In order to ensure the uniformity of temperature and humidity in the box, an internal circulation system is specially adopted.

Model YH-40B:

Model YH-60B,80B:

---
