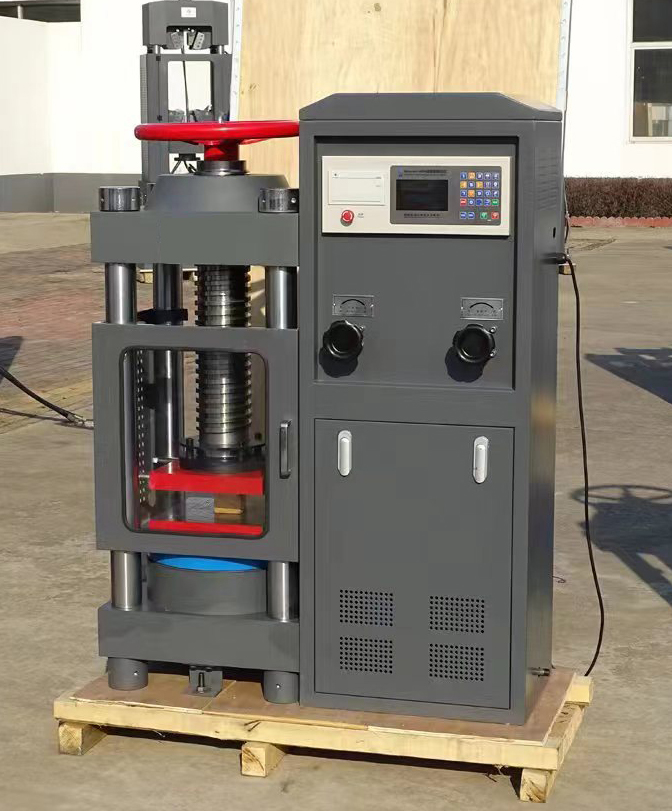

Digital Displayed Concrete Compression Testing Machine

2000KN Model  COMPRESSION TESTING MACHINE

Testing and Operation

1、 Operation interface

Lightly press the corresponding Arabic numerals to select the desired interface. For example, press 4 to enter the device interface. Here, you can change the corresponding raw data, such as time, network, language, registration, etc. Press the number 5 key to enter the setting interface. Here, according to personalized settings, press the number 1 key to enter the test data selection page. Press the number 1 key to select the cement mortar compression resistance, and enter the personalized setting interface for the test, Press the number key 1 to select the compressed X-axis display. Here, you can choose the data displayed on the X-axis according to your personal preferences, such as time, load, and stress

2、 Calibration

Press the number key 3 to enter the calibration interface, press the number key 1 to select the device, and enter the next level interface. Here, you can customize the device range and power outage protection. Press the corresponding number key to complete the setting, and the calibration test status can be carried out. After calibration is completed, click the keys 1, 3, and 5 to correct the calibration table, detection points, and equipment code.

3、 Testing

Cement mortar compression resistance (example)

Press the Arabic numeral 1 to enter the experimental selection interface, press the number key 1 to select the compressive strength of cement mortar, and enter the experimental interface to select the corresponding 1,2,3,4,5,6 to change the experimental data. For example, press 4 to pop up the strength grade selection interface. After all data selections are completed, click the OK key on the keyboard to enter the experiment. If you want to exit the experiment, press the Return key on the left side of the OK key on the keyboard.

Concrete bending resistance (example)

4、 Main specifications and technical parameters
