Dust Humidifier for Cement Plant

Short Description:


Product Detail

Product Tags

  • Product Description

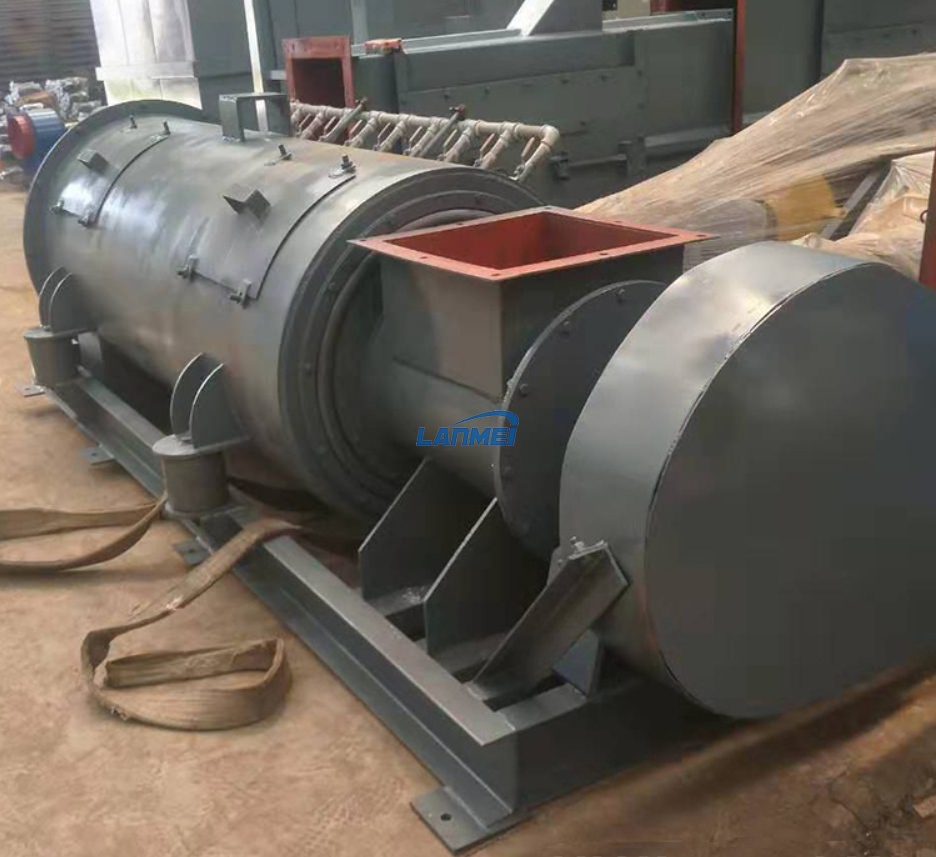

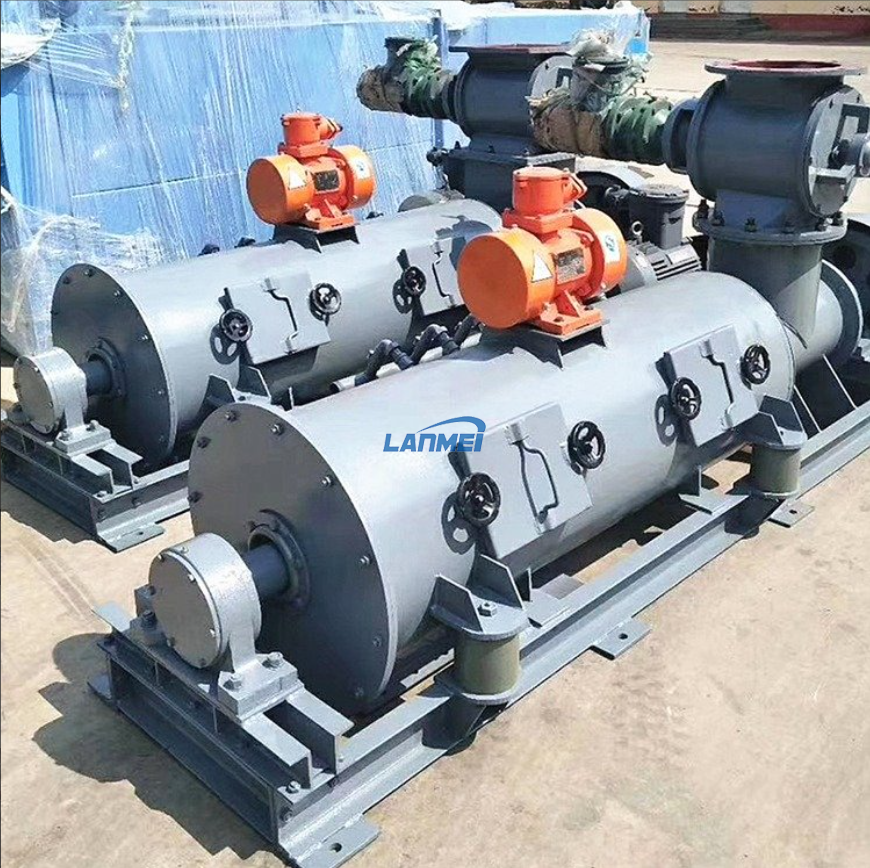

Dust Humidifier for Cement Plant

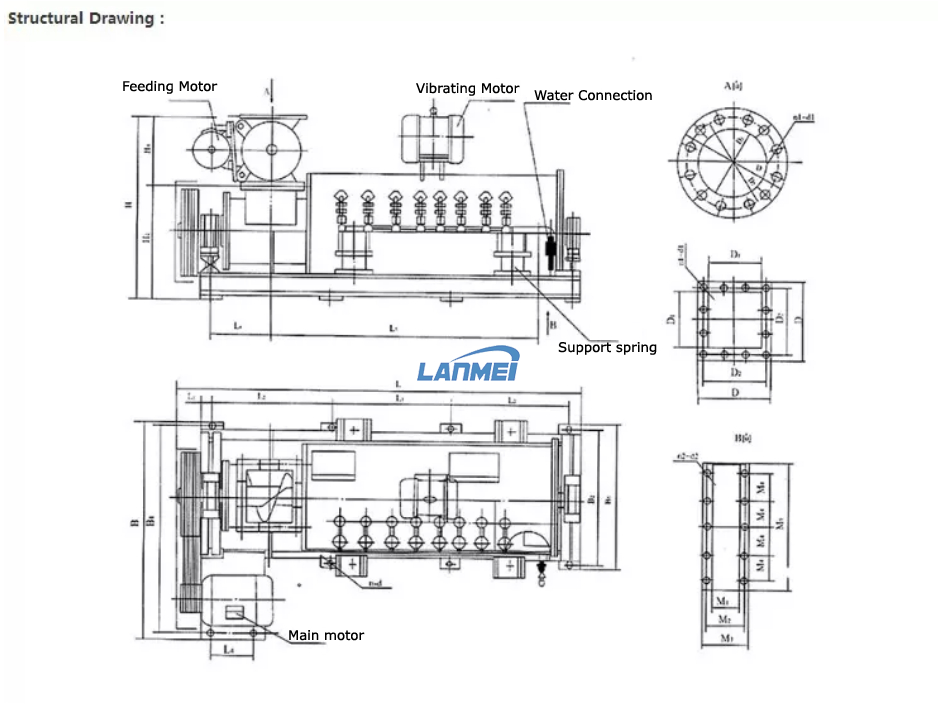

The single-shaft dust mixing humidifier is composed of four parts: uniform feeding, blade feeding, mixing and beating humidification, vibration system, etc., and is equipped with special electric control and water supply system. The equipment is fixed on the base as a whole, and the cylinder is supported by four groups of elastic elements. Through the vibration excitation device, vibration is applied, so that the cylinder vibrates at high frequency during the operation of the whole machine, so that the cylinder wall and the stirring shaft are always connected. Maintaining a certain gap greatly reduces the running resistance of the whole machine, completely eliminates the phenomenon of boring and stalled rotors, reduces downtime and cleaning time, and improves work efficiency. The water supply is controlled by a valve block. In order to stabilize the water supply and clean water quality of the system, a filter is set in the pipeline, and the main control cabinet performs interlocking control on each part of the humidifier to achieve the purpose of controlling the water supply and constant humidity operation. The mixing humidifier has the characteristics of large processing capacity, compact structure, advanced technology, stability and reliability, and simple maintenance.

Use: The single-shaft dust humidification mixer is often used for various types of ash storage dry ash to spray water, humidify, mix and transport powder, so as to meet the requirements of environmental protection and outbound transportation. Widely used in the humidification, stirring and conveying of solid particulate materials in chemical, mining, power plants, steel mills, etc.

Advantage:

1. High output (200t stirring and humidifying per hour), uniform humidification and reliable work.

2. Special atomizing nozzles and water supply system with adjustable water volume can ensure uniform humidification of materials.

3. The vibration system is added to overcome the problem that the sticky dust is easily formed into the cylinder wall, which improves the adaptability of the humidifier and expands the application range of the humidifier. And the shell and the base are elastically connected, so that the rapping has no effect on the whole machine.

4. The stirring rod is made of iron-based wear-resistant alloy or composite ceramics, and has a long service life.

5. The lining of the shell is made of iron-based wear-resistant alloy, which has a long service life and avoids the self-flow of materials caused by excessive clearance after wear.

6. The layout of the machine is flexible, there are two forms of chain transmission and direct connection, and the transmission mechanism adopts cycloid reducer.

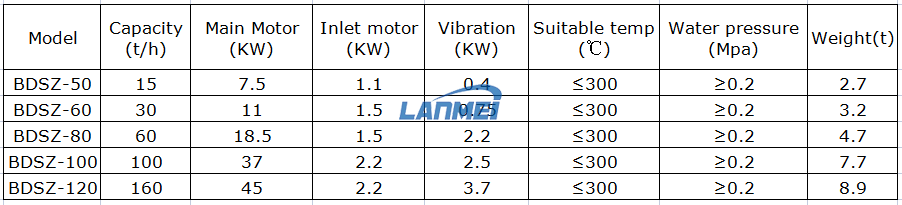

TECHNICAL DATA:

08

091513

2

7
