Laboratory Coal Crusher
- Product Description

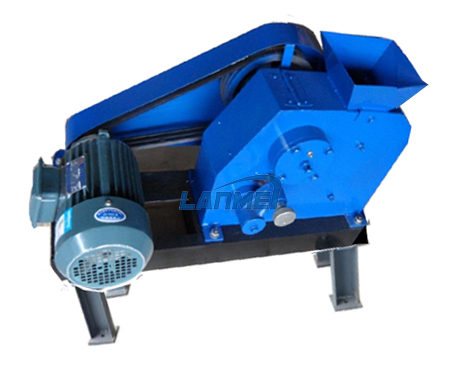

Laboratory jaw crusher
Laboratory Jaw Crushers are designed for economic size reduction of typical aggregates and common minerals at an output scaled for laboratory testing. Adjustable jaw openings allow close control of output size. High operating rpm promotes efficient size reduction with lower dust generation compared to other crushers and pulverizers.
Introducing the Laboratory Coal Crusher, an innovative and efficient instrument designed to reduce coal samples into fine powder for analysis. This cutting-edge machine is capable of crushing coal to a consistently homogeneous size with minimal dust generation, ensuring easy and accurate analysis of coal properties.
The Laboratory Coal Crusher boasts a sturdy construction made from high-quality materials that guarantee exceptional durability and long-lasting performance. Its compact design allows for easy installation in any laboratory or testing facility, optimizing space utilization without compromising its effectiveness.
Equipped with a powerful motor and advanced crushing mechanism, this state-of-the-art crusher can process a wide range of coal samples with varying hardness. Its adjustable outlet size allows for precise control over the final particle size, making it suitable for various research applications.
The Laboratory Coal Crusher comes with user-friendly controls and a digital display, enabling operators to monitor and adjust the crushing parameters with ease. It features a safety interlock system that prevents operation when the door is open, ensuring operator safety at all times.
Furthermore, this versatile crusher is designed for easy maintenance, with quick and hassle-free access to key components. It includes a removable sample tray that facilitates sample collection and cleaning, reducing downtime between tests.
In addition to its outstanding performance, this Laboratory Coal Crusher adheres to environmental standards by incorporating efficient dust collection and containment systems. This ensures that any potential air pollutants generated during the crushing process are adequately captured and filtered, minimizing environmental impact.
Whether in research institutions, industrial laboratories, or coal processing plants, the Laboratory Coal Crusher is an indispensable tool for scientific analysis and quality control. It delivers reliable, accurate, and rapid results, enabling researchers and operators to make informed decisions based on the coal samples’ properties.
Experience enhanced productivity and unmatched reliability with the Laboratory Coal Crusher. Invest in this advanced solution and unlock the full potential of your coal testing and research activities.
Uses:
It is used in crushing rock and ore with mid-hardness of units of mine, metallurgy, geology, building material, light industry, chemical industry and testing.
Characteristics:
1. The dental plate is made of high manganese steel with big crushing strength and good result.
2. The output size could be adjusted by regulating handle.
3. It adopts Y90L-4 three-phase motor, safe and reliable.
Main parameters:
| Model | Voltage(V) | Power | Input size | Output size | Spindle speed | capacity | Overall dimensions | N.W. | G.W. |
| (Inlet size) | (kw) | (mm) | (mm) | (r/min) | (kg/hour) | (mm) D*W*H | (kg) | (kg) | |
| 100*60mm | Three-phase,380V/50HZ | 1.5 | ≤50 | 2~13 | 600 | 45~550 | 750*370*480 | 125 | 135 |
| 100*100mm | Three-phase,380V/50HZ | 1.5 | ≤80 | 3~25 | 600 | 60~850 | 820*360*520 | 220 | 230 |
| 150*125mm | Three-phase,380V/50HZ | 3 | ≤120 | 4~45 | 375 | 500~3000 | 960*400*650 | 270 | 280 |
Optional parts:we can add legs(shelf) below the crusher.
1.Service:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the
machine,
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.One year guarantee for whole machine.
d.24 hours technical support by email or calling
2.How to visit your company?
a.Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can
pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can pick up you.
3.Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
4.You are trade company or factory?
we have own factory.
5.What can you do if the machine broken?
The buyer send us the photos or videos. We will let our engineer to check and provide professional suggestions. If it needs change parts, we will send the new parts only collect cost fee.
