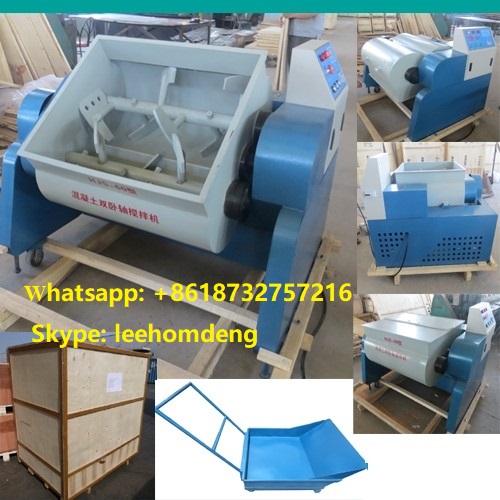

Laboratory Concrete Mixer Price For Sale

Laboratory Concrete Mixer Concrete Testing Equipment for Sale

The installation of the mixing blade adopts the method of thread locking and welding fixed installation, guarantee tightness of blade, andalso can bereplacedafter the wear and tear.Unloading iswith 180 ° tilting discharge.Operation adopts the combination design of manual open and limit control.mixing time can be set in a limited time.

Mixer is mainly composed of retarding mechanism, mixing chamber, worm gear pair, gear, sprocket, chain and bracket, etc.Through the chain transmission, the machine mixing pattern for motor drive axle shaft cone drive, cone by gear and chain wheel drives the stirring shaft rotation, mixing materials.Unloading transmission form for motor through a belt drive reducer, reducer by chain drive stirring the rotate, flip and reset,unloadthe material.

The machine adopts three axis transmission design, the main transmission shaft is in the middle of the positionof the mixing chamber both sidesplates, so that increases the stability of the machine whenworking;Turn 180 ° when discharging, the drive shaft force is small, and occupied area issmall.All the parts after precision machining, interchangeable and general, easy disassembly, repair and replacement blades for vulnerable parts.The driving is fast, reliable performance, durable.

一、Check before use

（1）.Place the machineto a reasonable position,lockthe universal wheels on theequipment, adjust the equipment anchor bolt, so that it is fully contactedwith the ground.

（2）.In accordance with the procedures “六, operation and use” no-load check machine, must be running normally.The connection parts no loose phenomenon.

（3）.Confirm themixingshaft rotatesoutward.If wrong, please change the phase wires, to ensure that themixingshaft rotate outward.

一、Technical Parameters

1、Mixing bladeturningradius：204mm；

2、Mixing bladerotate speed：outer55±1r/min；

3、Rated mixing capacity：（discharging）60L；

4、Mixing motor voltage/power：380V/3000W；

5、frequency：50HZ±0.5HZ；

6、dischargingmotor voltage/power：380V/750W；

7、Max particle sizeof mixing：40mm；

8、Mixing capacity：Under the condition of normal use, within60 seconds the fixedquantityof concrete mixture can be mixed into homogeneousconcrete.
