Laboratory Mini Pulverizer Ore Sample Preparation And Powder Grinding Machine

Short Description:


Product Detail

Product Tags

  • Product Description

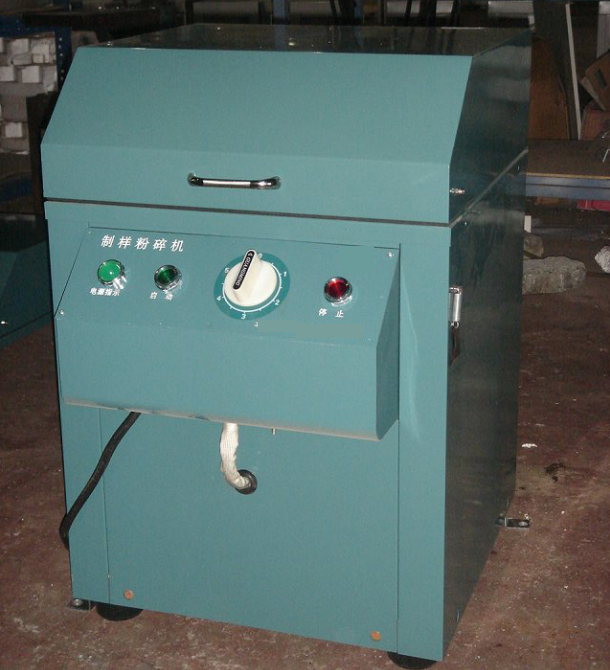

Laboratory Mini Pulverizer Ore Sample Preparation And Powder Making Machine Grinding Mill Machine

Characteristics:

1.Theshell is made ofhighqualitysteel plate,thesurfaceis withelectrostatic spraying, attractive appearance.2.It adopts Y90L-6 three-phase motor, safe and reliable.3.Motor driveneccentrichammervibrationthegrinding chamber, and back and forthextrusion, grinding,the output size is80-200mesh.4.The internal structureis reasonableand high efficiency,fast, easy removal, thebasedoesn’t need to befixed, runningsmoothly, withoutfeeling when touching the shell.

Model

FM-1

FM-2

FM-3

Input size(mm)

<15

Output size(mesh)

80-200

Feed quantity(g)

<150

<150*2

<150*3

Power

380V/50HZ

Hardness of earthen bowl

HRC30-35

Impact value

J/cm²≥39.2

Wiring

Three-phase four-wire

Overall dimension(mm)

450*450*665

Motive power

Y90L-6

Weight of whole machine(kg)

120

124

130

IMG_1751

02 - 副本

pulverizer
