Moist Room Control Systems

Short Description:


Product Detail

Product Tags

  • Product Description

Curing Room Constant Temperature And Humidity Automatic Control System

This equipment is suitable for standard maintenance of cement and concrete specimens in buildings, highways, scientific research, quality inspection and construction sites. It has the advantages of convenient operation, automatic temperature and humidity control digital display, large negative ion humidification, and stainless steel water tank heating.

【Technical parameter】

Temperature control accuracy: ≤20±1℃(Optional:Waterproof airconditioner)

Humidity control accuracy: ≥95% (adjustable)

Heating power: 220V±10%~3KW

Cooling power: 1500W

Applicable room: 15 square meters

humidity control system

curing room picture

curing room humidity

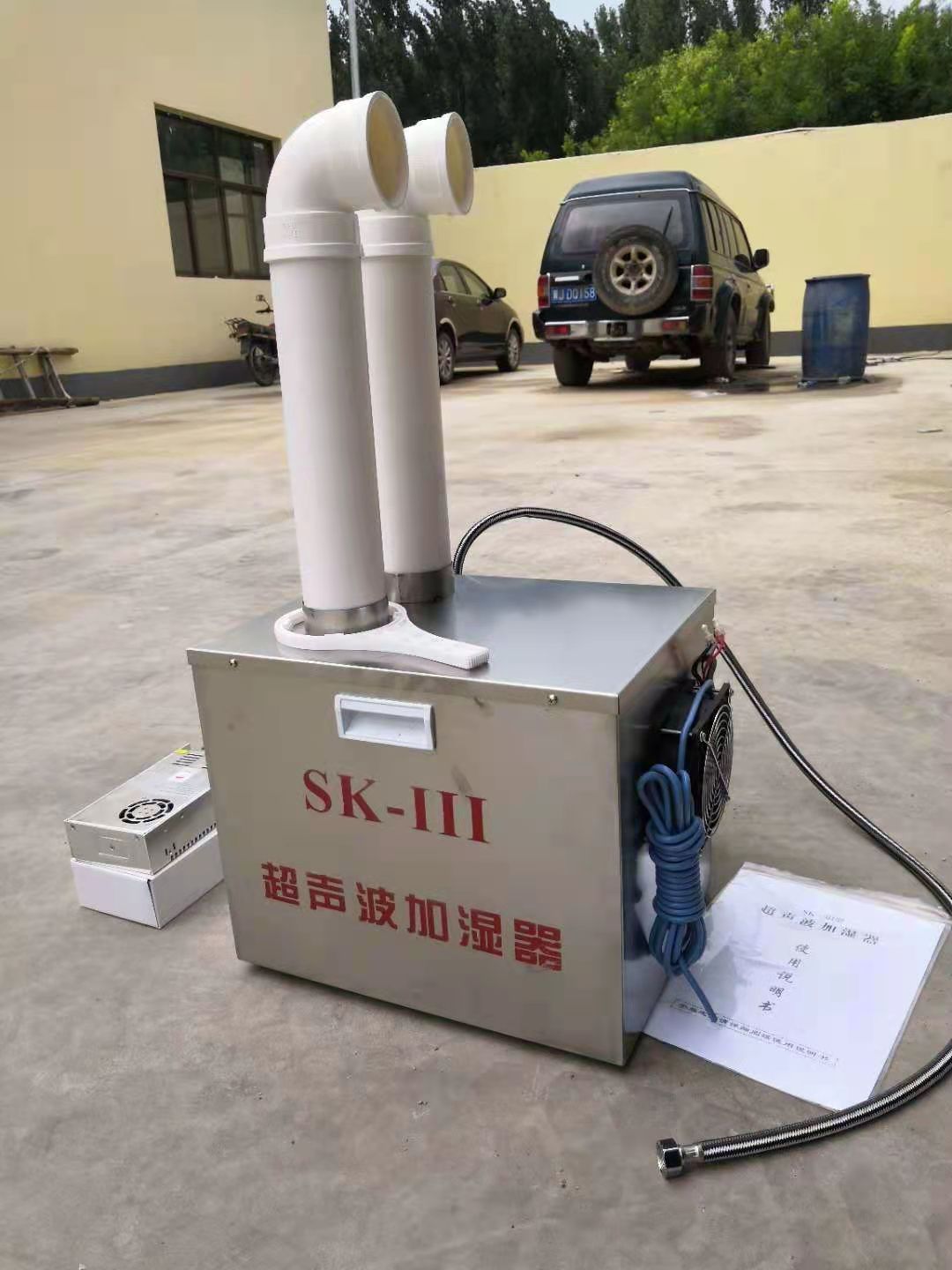

Ultrasonic humidifier

Ultrasonic humidifier:humidification systems utilize air atomization technology to produce a fine vapor fog that maintains high humidity requirements.

Installation diagram

Optional part: Waterproof air conditioner

The special air conditioner for the curing room sold by our company can be waterproof and moisture-proof. Because there is a humidification atomizer in the curing room, it has the characteristics of high humidity. The special waterproof air conditioner will not burn out due to excessive humidity in the maintenance room. The special air conditioner is connected and controlled by a constant temperature and humidity automatic controller, which automatically controls the opening and closing of the air conditioner, heating and cooling. The effect of standard curing for the strength and setting time of cement concrete products is more effective and accurate!

1.5P waterproof air conditioner is suitable for curing rooms within 15 square meters

2P waterproof air conditioner is suitable for curing rooms within 25 square meters

3P waterproof air conditioner is suitable for curing rooms within 35 square meters

air conditioner 1.5P

Other Models Automatic Temperature And Humidity Control System for Curing room :

30~60m³,60~90m³,90~120m³

automatic

Cooling, heating and humidity control integrated machine

Technical Data:

Temperature control range: 20±1℃

Humidity control range: ≤95%RH

Heating power: <4800W

Cooling power: <3500W

Power supply: three-phase four-wire system, instrument (220 V) temperature control equipment Dimensions: 600×510X 1510mm

Structure and working principle:

The equipment consists of a controller, a heating system, and a refrigeration system. It has a high-precision controller with a hysteresis function, so that the AC contactor does not work frequently without losing the accuracy of the control instrument, and has a protection function for the control instrument. The design can control the space 30m³, with infrequent work throughout the year. The temperature control is automatically controlled by the temperature controller, and the humidity control is also automatically controlled by the controller. The humidity probe is a high-precision humidity sensor, and the input to the instrument is the standard signal. The entire control process does not require manual monitoring.

Related products:

Laboratory equipment cement concrete5Contact informations

1.Service:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the

machine,

b.Without visiting, we will send you user manual and video to teach you to install and operate.

c.One year guarantee for whole machine.

d.24 hours technical support by email or calling

2.How to visit your company?

a.Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can

pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),

then we can pick up you.

3.Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

4.You are trade company or factory?

we have own factory.

5.What can you do if the machine broken?

The buyer send us the photos or videos. We will let our engineer to check and provide professional suggestions. If it needs change parts, we will send the new parts only collect cost fee.
