STM series products are mainly for daily application development of laboratories, high-quality materials and a stable furnace temperature control system can ensure the reliability of experimental data; 1000ºC/1200ºC furnaces take new ceramic fiber material as the furnace chamber material, the choice of high quality high-temperature alloy wire as heating element, temperature controller microcomputer PID control module, enabling precise temperature control and constant temperature requirements.1. Furnace chamber material use mullite ceramic fiber materials, no powder pull off under high temperature, small heat capacity, and energy saving more than 50%.3. Heating rate is 10-30ºC/min, fast heating rate, it will take 15-30minutes from room temperature to 1200ºC.5. The temperature controller can set the program with 30 segments and can set the temperature curve. 7. With over-temperature alarm, when the temperature exceeds the set temperature, audible and visual alarm and stop heating.Options:
- Optional large screen paperless recorder, to achieve real-time temperature curve recorded with a memory card of experimental data analysis and printing.
- Optional installation of air intake, can feed into air and inert gas.
- Also install an exhaust chimney connecting stainless steel bellows, so that the furnace high temperature volatile toxic gas emissions to a specified location.

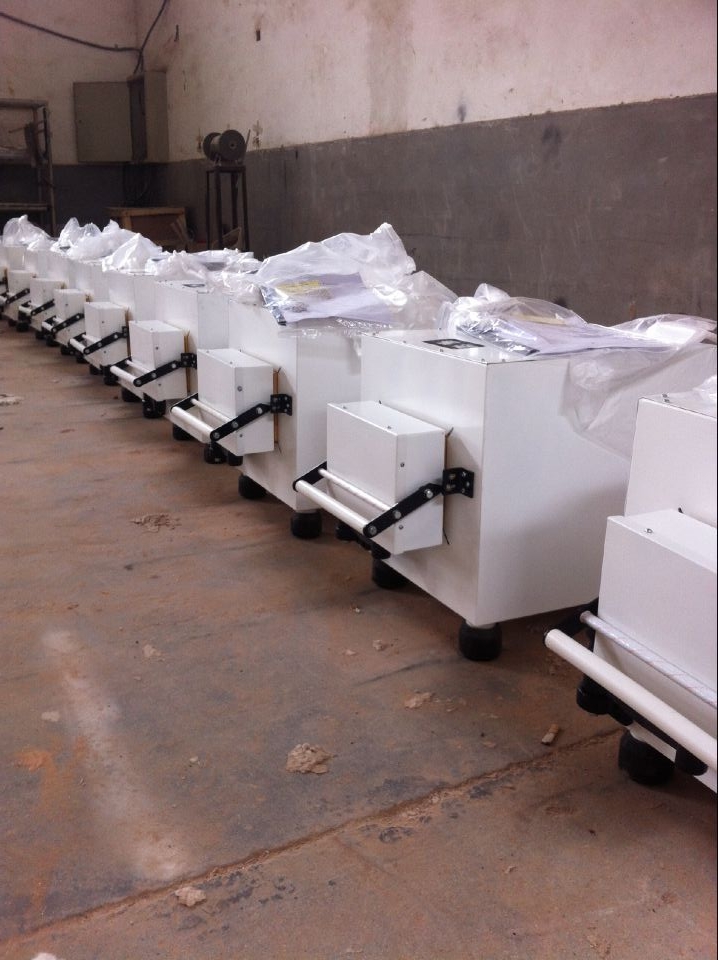

Box-type resistance furnace which is also known as muffle furnace; it’s the basic heating equipment for laboratory use. Its wide application areas covering industrial & mining enterprises, scientific research institutes, universities, laboratories and other experiments purpose. The resistance furnace is the necessary equipment for sintering, melting and heat treatment of the material and volatile experiments.
Features♦The use of modern integrated structure design, elegant, easy to operate.♦The door structure patented technology (patent number: ZL 2007 2 0028142.4), all-round sealed door. Make sure that the furnace temperature does not leak, to improve the working environment, to extend furnace life, save energy♦The selection of the poly silicon furnace alumina fiber sheet processing, the choice of the U-shaped heating element 1800 series silicon molybdenum rods, ensure the stability of the electric furnace, reliable♦The enclosure is external double furnace structure, with cavity insulation, ventilation and other powerful effects. To ensure that the surface temperature of the furnace is far below the national standard♦Insulation materials imported high-quality ceramic fiber, 60% energy saving than traditional materials, light weight, good insulation effect♦The control system consists of 6-inch color LCD touch screen + PLC system componentsA.Bi-lingual interface, man-machine dialogue, easy manipulation,B.Has 60 segments and a single point of temperature-programmed heating mode, the heating and cooling curves displayed in real time and the freedom to control the heating rateC.Recipe management program to solve the troubles common user settings. 10 raised by a group of independent users recipe editing, the user’s convenienceD.Temperature control system has self-tuning, self-diagnostic functions♦A power transformer core made of imported silicon steel, high efficiency, small energy-saving, noise♦The temperature sensor is a “national standard” grade platinum and rhodium platinum thermocouple type B, good temperature resistance, high stability♦A door open power protection system that can effectively protect the safety of operating personnel♦The over-current and furnace surface temperature protection system to ensure safe operation of equipment♦After having restored power supply line anti-resistance furnace heating continued function to avoid unattended calls heating caused by other accidents♦The door, furnace mouth made of high quality 304 stainless steel, has a capacity to engage in oxidation
Ⅰ. Introduction
This series of furnace is used for element analyzing in labs, mineral enterprises and science research institutes; other applications include small size steel heating, annealing and tempering.
It is equipped with temperature controller and thermocouple thermometer, we can supply the whole set.
Ⅱ. Main Technical Parameters
| Model | Rated power
(kw) |
Rated tem.
(℃) |
Rated voltage(v) | Working
voltage(v) |
P |
Heating-up time(min) | Working room size(mm) |
| SX-2.5-10 | 2.5 | 1000 | 220 | 220 | 1 | ≤60 | 200×120×80 |
| SX-4-10 | 4 | 1000 | 220 | 220 | 1 | ≤80 | 300×200×120 |
| SX-8-10 | 8 | 1000 | 380 | 380 | 3 | ≤90 | 400×250×160 |
| SX-12-10 | 12 | 1000 | 380 | 380 | 3 | ≤100 | 500×300×200 |
| SX-2.5-12 | 2.5 | 1200 | 220 | 220 | 1 | ≤100 | 200×120×80 |
| SX-5-12 | 5 | 1200 | 220 | 220 | 1 | ≤120 | 300×200×120 |
| SX-10-12 | 10 | 1200 | 380 | 380 | 3 | ≤120 | 400×250×160 |
| SRJX-4-13 | 4 | 1300 | 220 | 0~210 | 1 | ≤240 | 250×150×100 |
| SRJX-5-13 | 5 | 1300 | 220 | 0~210 | 1 | ≤240 | 250×150×100 |
| SRJX-8-13 | 8 | 1300 | 380 | 0~350 | 3 | ≤350 | 500×278×180 |
| SRJX-2-13 | 2 | 1300 | 220 | 0~210 | 1 | ≤45 | ￠30×180 |
| SRJX-2.5-13 | 2.5 | 1300 | 220 | 0~210 | 1 | ≤45 | 2-￠22×180 |
| XL-1 | 4 | 1000 | 220 | 220 | 1 | ≤250 | 300×200×120 |
Post time: May-25-2023
