Customer order Concrete Compaction Magnetic Vibrating Table
Introduction Concrete Compaction Magnetic Vibrating Table,Concrete Magnetic Vibrating Table,laboratory Concrete Compaction Magnetic Vibrating Table,
The laboratory is a quiet, clean, and scientific testing facility for obtaining accurate test data in order to correctly guide construction and ensure engineering quality. But, at present, our country laboratory uses all is the 70′s old-style concrete vibration table, it already can not adapt the modern laboratory’s need, its main reason is the first noise is big, the second amplitude is unsteady, it is a big problem in the laboratory that the test model moves on the table, which affects the health of the laboratory staff and the people around. According to the laboratory research, according to national standards, our factory designed and developed a concrete disk vibration table, the product design is reasonable, beautiful shape, strong technical. There is a control device, which is convenient, safe and reliable to use, the controller has automatic control function, the working table is installed with an electrically controlled magnetic field, during the test, the test die is absorbed by the magnetic field generated by the working table, so that the test die can not move, to avoid noise, but also to the laboratory a quiet environment. The instrument is widely used in construction, building materials and scientific research units, concrete blocks or other materials for vibrating compaction, is the most ideal contemporary test equipment.
Second, the design principle

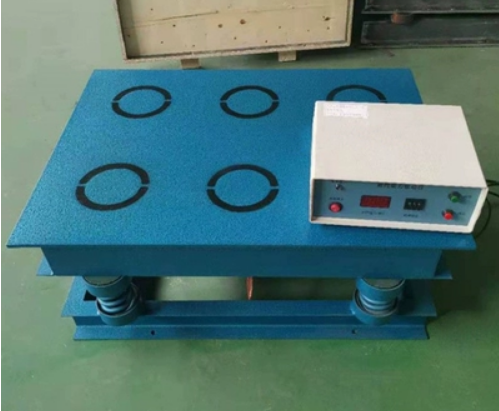

The table is composed of: 1, Table 2, magnetic field 3, attached vibrator 4, support spring 5, amplitude modulation spring 6, hinge device 7, Tie Rod 8, program control instrument etc. . The table is made of 145 channel steel and 12mm steel plate by welding, the Upper Mesa is connected with the supporting spring and the amplitude modulation spring base by a spring-supported mesa tie rod to play the amplitude modulation role. The vibration source is provided by a closed attached vibrator which is installed at the lower part of the mesa, when the vibrator operates, the high-speed rotation of the eccentric weight produces the vibration force, and the supporting spring mainly plays the role of supporting and damping.
Methods of use
The vibration table working procedure is controlled by the controller. Put the concrete test molds on the table, turn on the power switch, set the time to the required value, time set range 0-999 seconds arbitrary, open the table control switch, press the start key to work, in the working time can press the stop switch, a work program to complete, after the vibration table stop, closed the magnetic control switch, take down the test molds. the next test, press start switch digital display will automatically clear zero.
Technical parameters
- Size: 800X600mm
- Voltage: 380V/50HZ
- Magnetic disk voltage: 36V
- amplitude: 0.5 ± 0.02 MM
- vibrator power: 1.1 kw 1.5 kw
- vibration frequency: 50HZ
- noise test: no more than 80 db
Cangzhou Blue Beauty Instrument Co., Ltd. is a professional engaged in metal, non-metal and composite material mechanical properties test equipment research and development and manufacturing of national high-tech enterprises.
The company realizes the sustainable development of the enterprise through scientific product quality management. In recent years, the company’s products have passed the strict market test, established a good technical cooperation relationship with a number of scientific research institutions and laboratories across the country, provided tens of thousands of testing machines for thousands of users at home and abroad, and established a professional pre-sales and after-sales service system.
Our products are exported to many countries, such as Russia, Malaysia, India, Kazakhstan, Mongolia, South Korea, Europe and other countries, are welcomed by customers, and we have always maintained cooperation.
Our products have drying oven,muffle furnace,laboratory heating plate,laboratory sample pulverizer,laboratory incubator,concrete instrument,cement instrument etc.
