Slump Cone Test Set Concrete

Slump Cone Test Set Concrete

The slump cone test set is carried out by filling the slump cone with freshly mixed concrete which is tamped with a steel rod in three layers. The concrete is levelled off with the top of the slump cone, the cone removed, and the slump of the sample is immediately measured.

SM series slump cone
SM-BP/C Metal base plate with clamps and measuring bridge
SC-R24 Scoop
TR-S600 Steel tamping rod, dia. 16*600mm

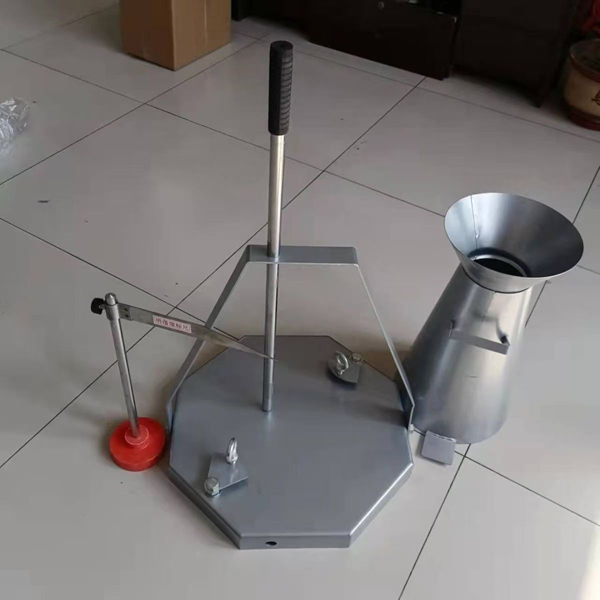

Portable slump cone test set complete with metal base plate SM-BP/C and TR-S600 tamping rod. Clamps on the base hold the cone for filling and tamping. After the cone is removed, the handle raises over the specimen and the slump is measured using a 22 cm scale engraved in 1 cm increments on the end of the rod. The set of components are fitted together for easy carrying.

Standard: BS 1881, pr EN 12350-2, ASTM C143

Thickness 2.0mm Seamless welding

• The apparatus will comprise of a slump cone with handles made of mild steel sheet, a chrome plated steel tamping rod of 16 mm diameter X 600 mm long, rounded off at one end, with a scale marked on it and a steel base plate with a carrying handle.
• The mould for the test specimen will be in the form of frustum of a cone having the following internal dimensions Bottom diameter: 20 cm Top diameter: 10cm Height: 30cm
• The mould will be constructed of metal of at least 1.6 mm (16 SWG) thickness and the top and bottom will be open and at right angles to the axis of the cone. The mould will have a smooth internal surface. It will be provided with suitable foot pieces to a base plate and also handles to facilitate lifting it from the molded concrete test specimen in a vertical direction as required by the test.
• The mould will be provided with a suitable guide attachment. Unit will be provided with cleats & swivel handle. TAMPING ROD: The tamping rod will be of steel, 16 mm in diameter, 60 cm long and rounded at one end.
• Comes with a with test certificate for conformity
