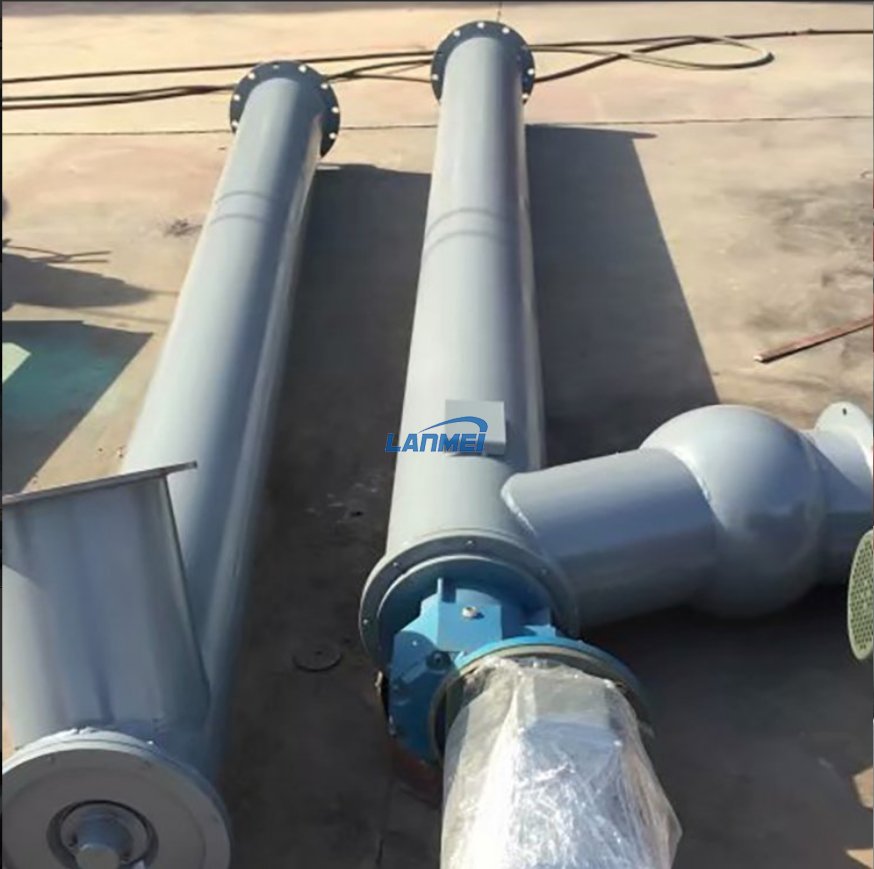

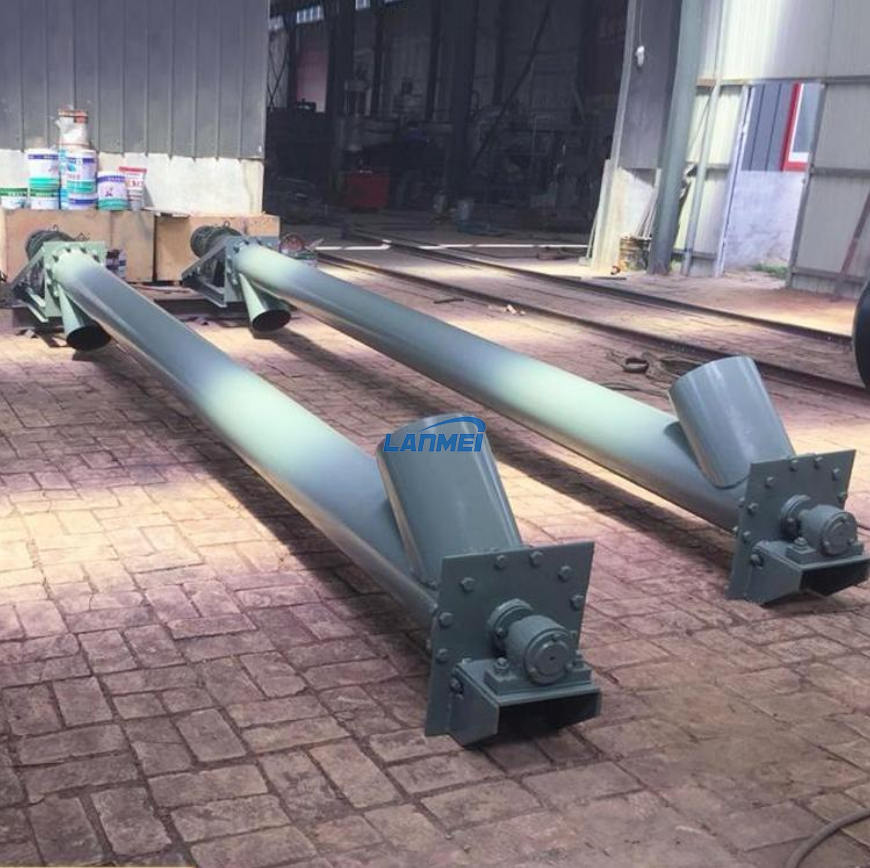

Tubular Screw Conveyor

Tubular screw conveyor is a continuous conveying equipment that uses screw rotation to move materials, suitable for conveying flour, cereals, cement, fertilizers, ash, sand, stones, pulverized coal, small coal and other materials. Due to the small effective circulation area in the body, the screw conveyor should not transport materials that are perishable, too viscous, and easy to agglomerate. The tubular screw conveyor can be arranged in a horizontal or inclined type. If the tubular screw conveyor needs to be conveyed in a different direction, a special order should be made.

The new screw conveyor digests and absorbs the advanced technology of advanced products, and is the replacement product of the LS type screw shaft conveyor. The structure of the intermediate hanging bearing and the material of the bearing have been greatly improved. Chilled cast iron is used as the main material of the hanging bearing. Chilled rust iron has good wear resistance, generally does not require lubrication, and the maximum working temperature can reach 260 °C. It is especially suitable for conveying abrasive materials such as cement, pulverized coal, slaked lime and slag.

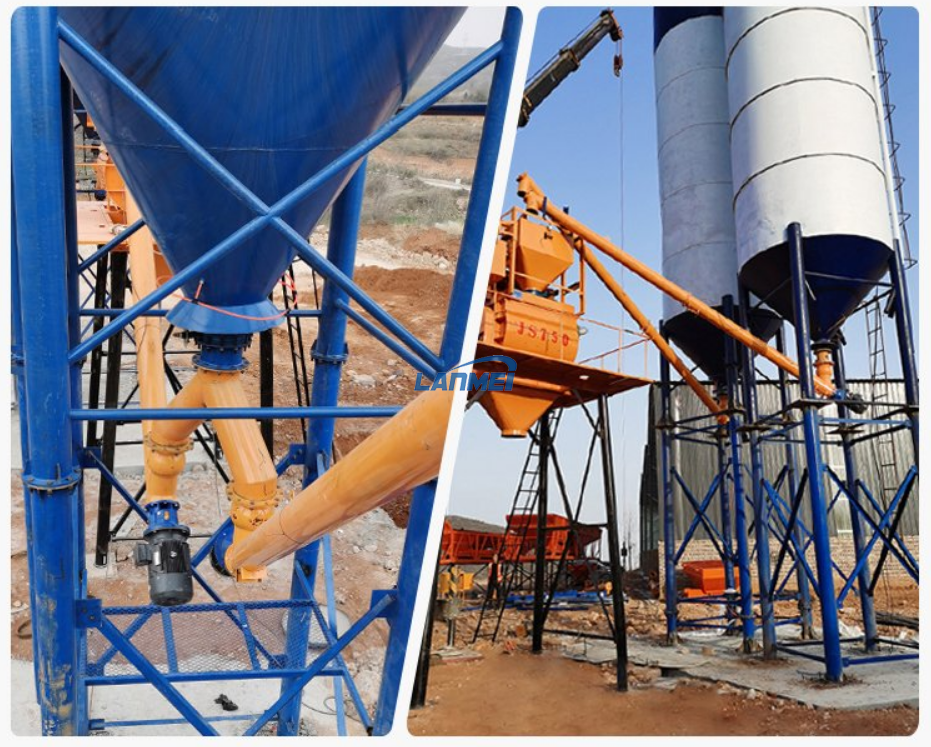

The new screw conveyor has novel and reasonable structure, advanced technical indicators, good sealing performance, strong applicability, low noise of the whole machine, convenient operation and maintenance, and flexible arrangement of the inlet and outlet ports. It is widely used in building materials, electric power, chemical industry, metallurgy, coal, aluminum and magnesium, machinery, light industry, grain and food industry: suitable for level or less than 20 degrees. Inclination, conveying powder and small block materials. The screw conveyor is not easy to transport perishable, viscous and agglomerated materials. The new screw conveyor has ten specifications in diameter from 100mm-1000mm, length from 4m to 70m, every 0.5m.

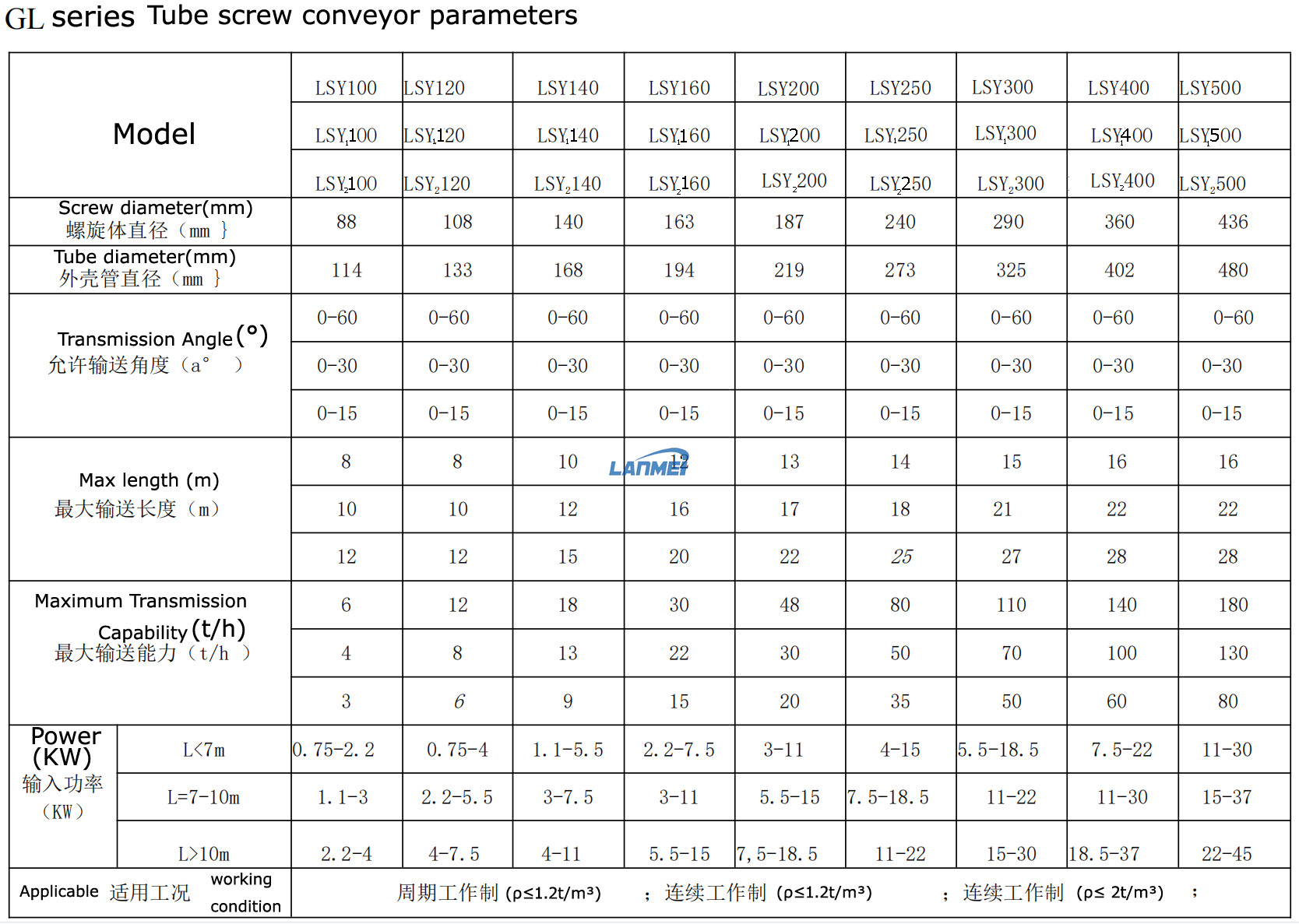

GL data

1149

Use

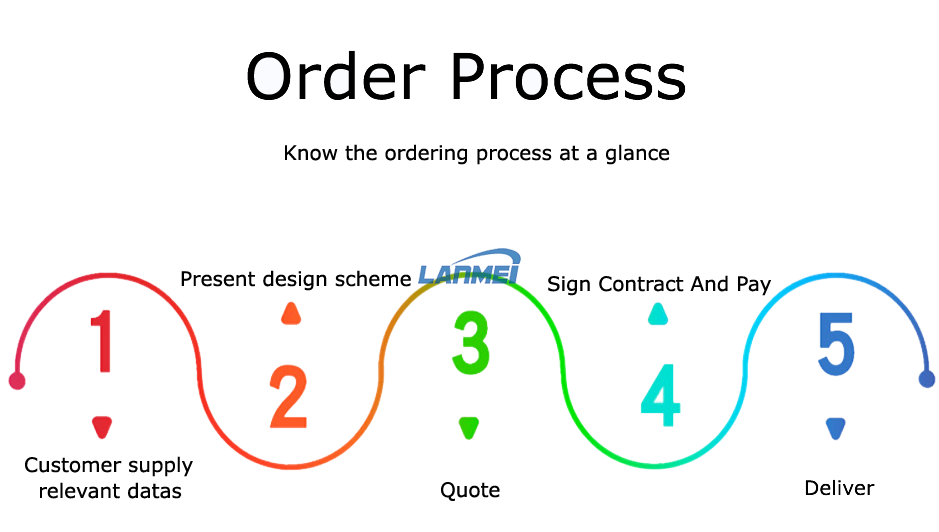

order process

Customer should supply: Material name and properties (power or particles etc);Material temperature;Transmission Angle;Delivery volume or weight per hour;Conveying length;

After getting these infomations, we will recommend suitable models and quote for customer.

Delivery time:commonly it will need 5 ~ 10 days.surely we will speed up for every order.

2QQ截图20220428103703

1.Service:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the

machine,

b.Without visiting, we will send you user manual and video to teach you to install and operate.

c.One year guarantee for whole machine.

d.24 hours technical support by email or calling

2.How to visit your company?

a.Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can

pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),

then we can pick up you.

3.Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

4.You are trade company or factory?

we have own factory.

5.What can you do if the machine broken?

The buyer send us the photos or videos. We will let our engineer to check and provide professional suggestions. If it needs change parts, we will send the new parts only collect cost fee.
