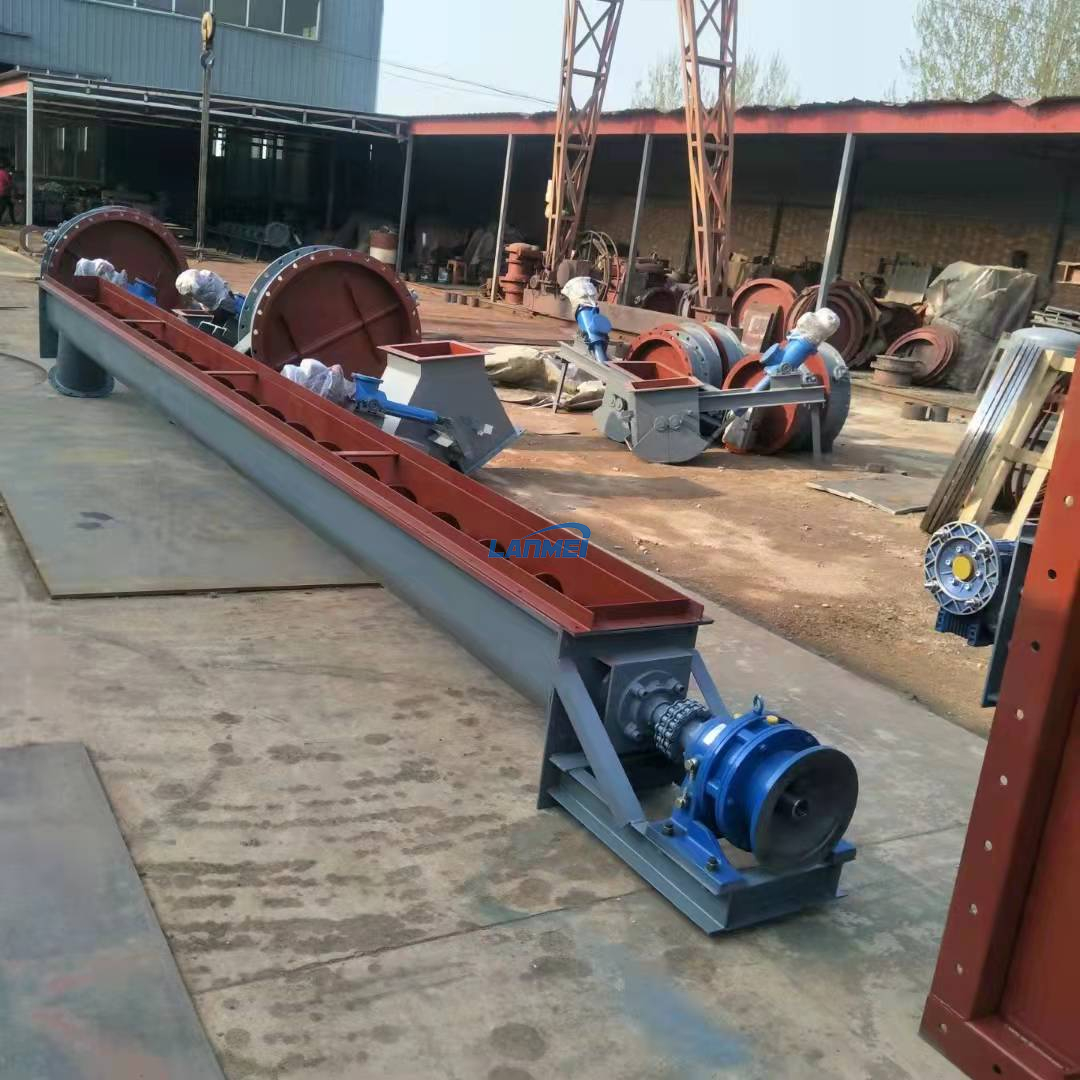

U shaped screw conveyor

U-shaped screw conveyor

U-shaped screw conveyor is a kind of screw conveyor. The production adopts DIN15261-1986 standard and the design conforms to the professional standard of JB/T7679-2008 “Screw Conveyor”. U-shaped screw conveyors are widely used in food, chemical, building materials, metallurgy, mining, electric power and other departments, mainly for conveying small granular, powdery, and small block materials. It is not suitable for conveying materials that are easily deteriorated, viscous and easy to agglomerate and have a large water content.

U-shaped screw conveyor is a kind of screw conveyor. The production adopts DIN15261-1986 standard and the design conforms to the professional standard of JB/T7679-2008 “Screw Conveyor”. U-shaped screw conveyors are widely used in food, chemical, building materials, metallurgy, mining, electric power and other departments, mainly for conveying small granular, powdery, and small block materials. It is not suitable for conveying materials that are easily deteriorated, viscous and easy to agglomerate and have a large water content.

Classification by screw conveyor drive mode:

1. When the length of the U-shaped screw conveyor is less than 35m, it is a single-axis drive screw.

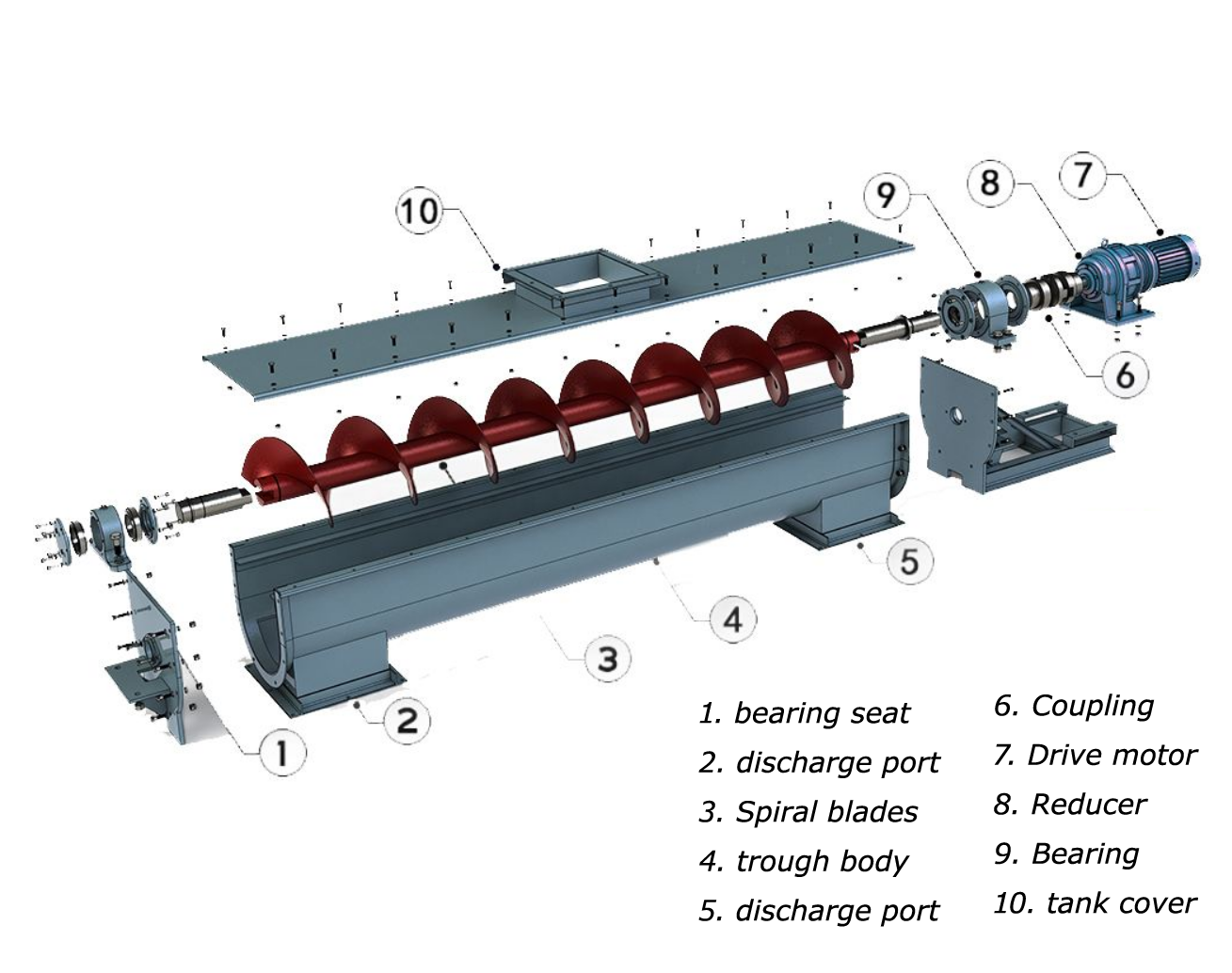

2. When the length of the U-shaped screw conveyor is greater than 35m, it is a double-shaft driving screw. According to the type of intermediate hanging bearing of screw conveyor 1. M1- is a rolling suspension bearing. It adopts 80000 type sealed bearing. There is a dust-proof sealing structure on the shaft cover. The temperature of conveying material is less than or equal to 80℃. 2. M2- is a sliding hanger bearing, equipped with a dust-proof sealing device, cast copper tile, alloy wear-resistant cast iron tile, and copper-based graphite oil-less lubricating tile. Commonly used in conveying materials with relatively high temperature (t≥80℃) or conveying materials with large water content.

Classification by screw conveyor material:

1. Ordinary carbon steel U-shaped screw conveyor – mainly suitable for industries with high wear and tear and no special requirements for materials such as cement, coal, stone, etc.

2. Stainless steel U-shaped screw conveyor – mainly suitable for industries that have requirements on the conveying environment such as grain, chemical industry, food, etc., with high cleanliness, no pollution to materials, long use time, but relatively high cost.

Features:

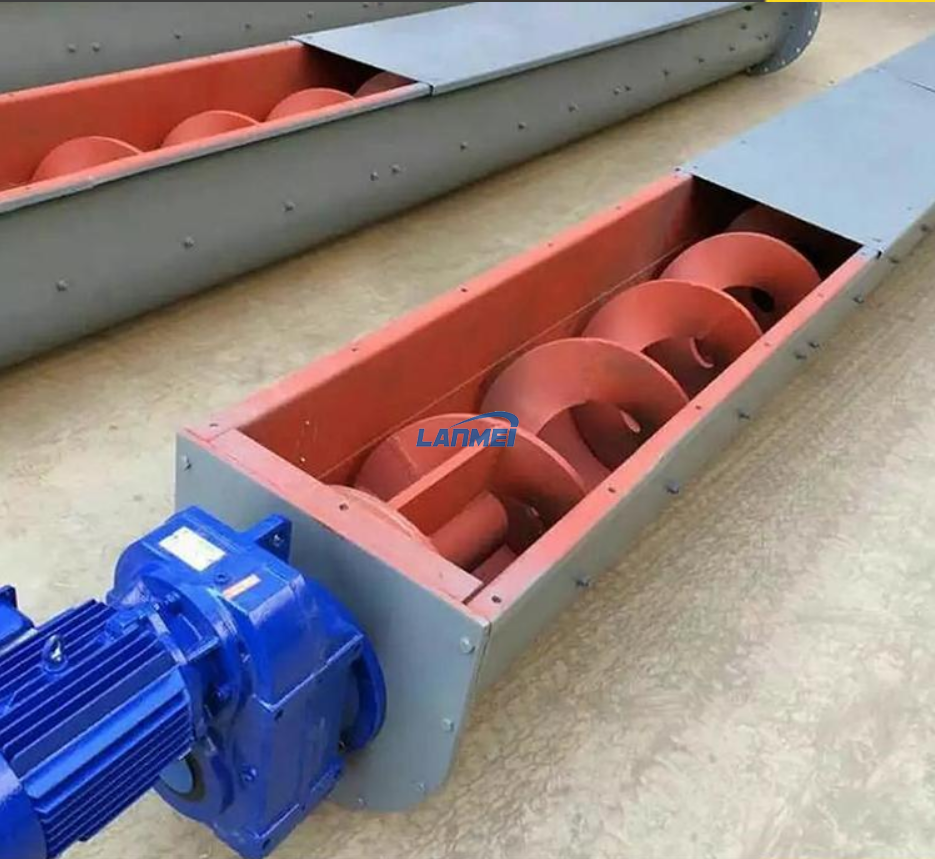

U-shaped screw conveyor is a kind of screw conveyor, suitable for small-scale operation, stable conveying, and can play a good role in the case of limited conveying site. The sealing performance is good, and it has great advantages for occasions with large dust and environmental requirements, which can avoid the generation of dust during the conveying process. However, the U-shaped screw conveyor is not suitable for long-distance transportation, and the cost is higher than that of the belt conveyor, and it is easy to cause damage such as extrusion to fragile materials.

Delivery time: 5~10 days according to real production,surely we will speed up for every order.
