YH-40B 60B 80B 90B HUMIDITY CURING CABINET

YH-40B Curing Cabinet is used for curing the test specimens of cement, concrete and cement elements. This chamber can maintain test samples at a specific temperature and humidity level.

Moist Cabinet for curing mortar and concrete test specimens

The Humidity Curing Cabinet is used for curing cement test samples.

The curing cabinet provides from -25ºC to +70ºC temperature and up to 98% humidity of cement specimens by an immersion heater and refrigerator unit which are supplied complete with the cabinet.

Cement and Concrete curing cabinet

This curing cabinet can be used for curing of cement mortar and concrete, it's kind of common construction material testing equipment.

This curing cabinet is suitable for curing of cement, concrete, cement product, automatic temperature control, uniform temperature, digital parameters setting & display, it's kind common concrete testing equipment in lab.

Features:

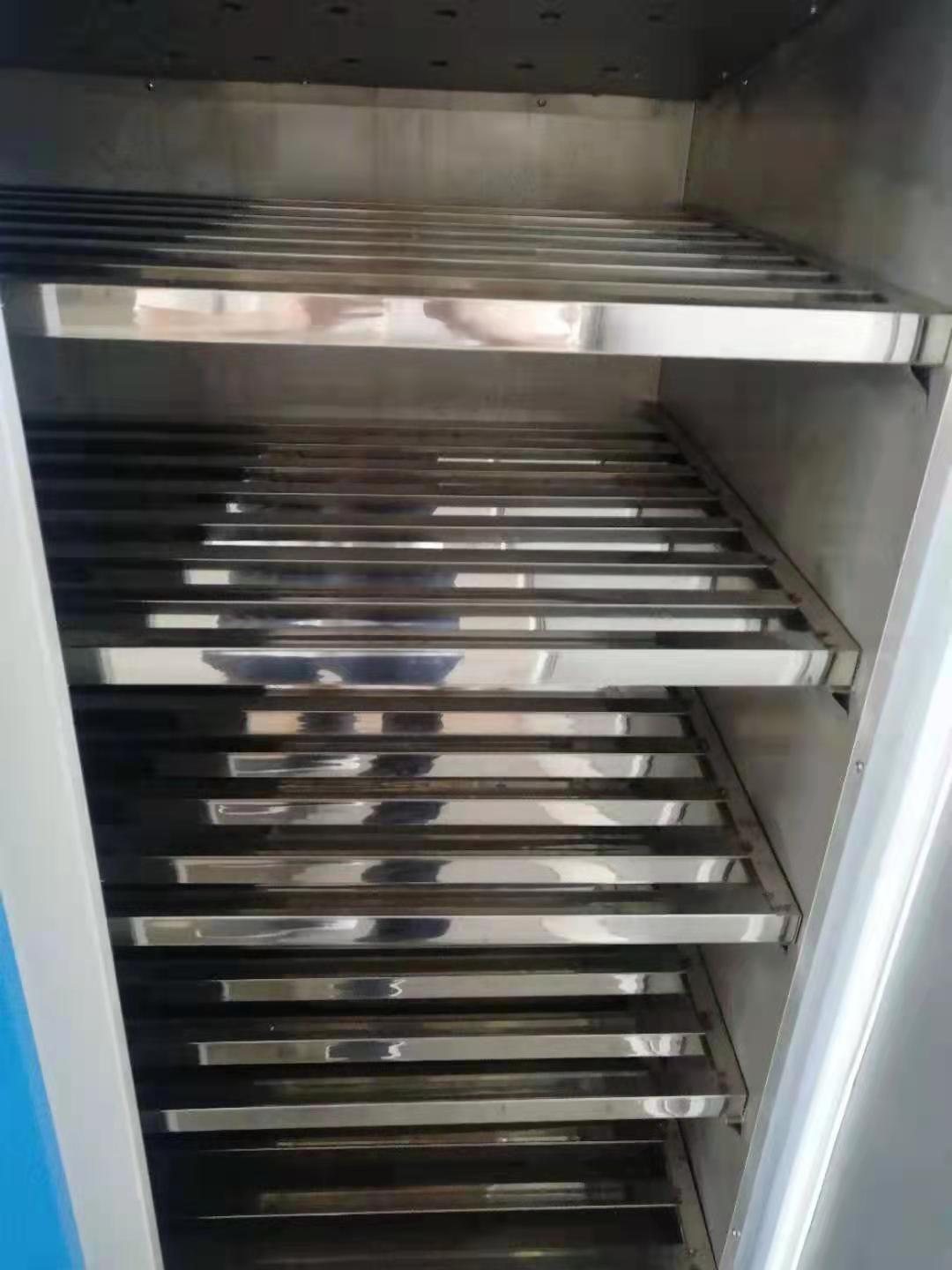

Chamber constructed of 3 layers, liner made of mirror stainless steel, enclosure made of quality cold rolling steel plate, middle layer filled with quality heat insulation cotton, frame made of aluminum alloy, robust structure, nice appearance, good corrosion resistant;

Full digital display temperature & humidity controller, high resolution, direct reading, easy operation, high accuracy

Large power compressor for refrigeration system, coil evaporator, external condenser, fan inside to reach uniform temperature

High power electric heating tube

Advanced ultrasonic humidifier reach better humidification effect

YH-40B standard constant temperature and humidity curing boxFully automatic control function, double digital display meter, display temperature, humidity, ultrasonic humidification, the inner tank is made of imported stainless steel.

technical parameter:

1.Internal dimensions: 700 x 550 x 1100 (mm)

2. Capacity: 40 sets of Soft practice test molds / 60 pieces 150 x 150x150 concrete test molds

3. Constant temperature range: 16-40℃ adjustable

4. Constant humidity range: ≥90%

5. Compressor power: 165W

6. Heater: 600W

7. Atomizer: 15W

8. Fan power: 16W

9.Net weight: 150kg

10.Dimensions: 1200 × 650 x 1550mm
